Description

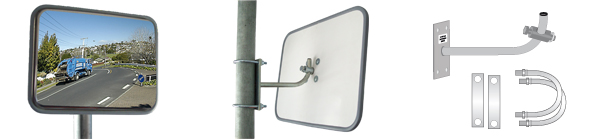

Rectangular Heavy Duty Stainless Steel Convex Mirror
The highly polished stainless steel rectangular mirror face is unbreakable and can withstand vandalism as well as accidental contact from machinery and vehicles etc. Complete with a fully adjustable galvanized steel J-Bracket, making the entire mirror weather proof and rust free.
Features
- Unbreakable stainless steel mirror face
- Vinyl celuka back
- Vinyl extrusion
- Includes Outdoor J-Bracket to fix to wall or ceiling
- Includes U-Bolts for mounting to a 75mm pole.
- Wall Mounting screws Not included
Suitable Uses

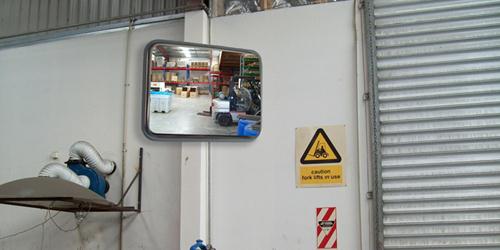

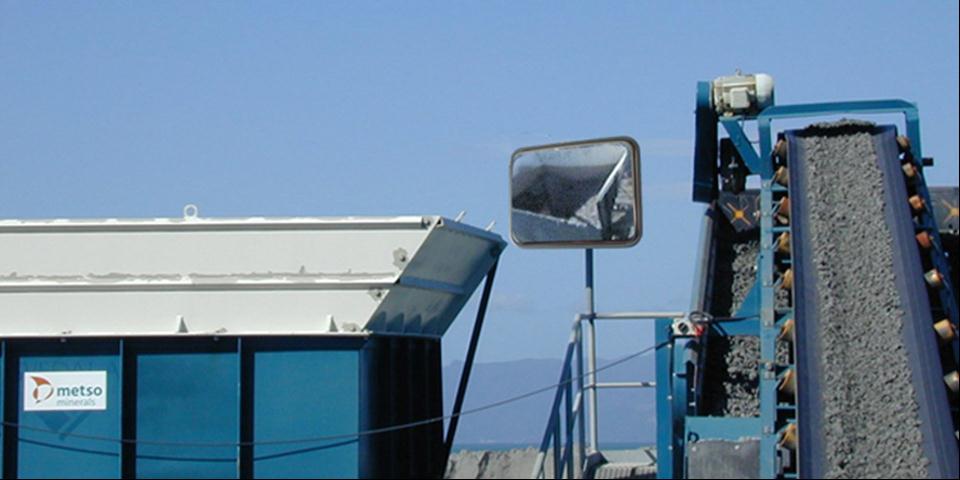

- Industrial Safety
- Vandal Prone Areas

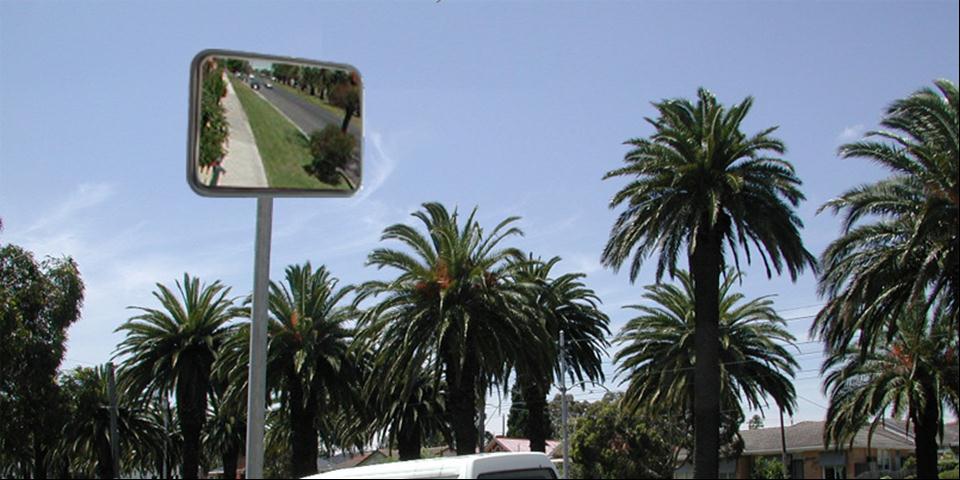

- Driveways and Carparks
- Outdoor Security around Buildings
- Security Checkpoints and Boarder Control
Download Information Sheet pdf.
Positioning
Specifications
| Product Code | Size Diameter | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 16346S | 450x600mm | Up to 42m | Stainless Steel | 10mm Vinyl | 270mm J-Bracket |
| 16368S | 600x800mm | Up to 60m | Stainless Steel | 10mm Vinyl | 335mm J-Bracket |
Installation Guide
Rectangualr Heavy Duty Convex Mirror Installation Guide:

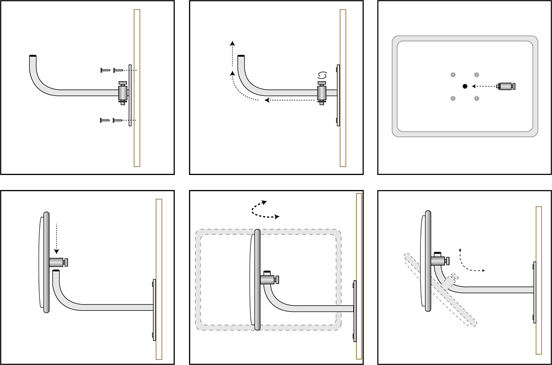

Wall Mounting:
-
Decide the appropriate place to site the mirror to give maximum vision.
-
Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.
-
Thread adaptor into the back of the mirror
-
Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.
-
Tighten the locking bolt on the adaptor securely.

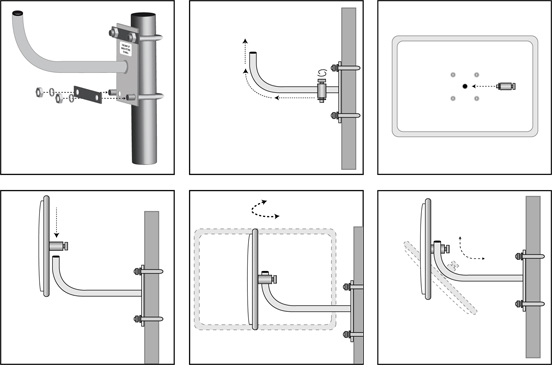

Pole Mounting:
-
Choose a 75mm Round pole to attach the U-Bolts to.
-
Thread the U-Bolt through ONE side of the J-Bracket and through both sides of the U-Bolt Flat Plate. Then thread the Washer and Nut onto the U-Bolt and tighten. Repeat for the second U-Bolt.
-
Thread adaptor into the back of the mirror
-
Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.
-
Tighten the locking bolt on the adaptor securely.
Cleaning Guide
Stainless Steel Mirror Cleaning Guide:
General Cleaning:
DuraVisionTM recommend cleaning their Stainless Steel Mirrors with soap and water and then with a soft, lint free, damp cloth.
DO NOT USE:
- abrasives
- acids
Polish:
DuraVision™ does not recommend using a commercial Stainless Steel Polish, as the protective layer will leave a residue on the highly polished mirror faces. Rubbing plain white flour on a dry stainless steel mirror face with a dry cloth will polish the mirror to its original brilliance.
Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours with a suitable lacquer thinners. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.
Additional Images
Rectangular Heavy Duty Stainless Steel Traffic
