Full Dome Stainless Steel Anti-Ligature Mirror

www.correctionsmirror.com

www.gefaengnisspiegel.de

The DuraVision Stainless Steel Full Dome is manufactured from highly polished mirror grade Stainless Steel. The frames and hole design have been developed to meet the stringent requirements of the UK Home Office and the London Metro Police, making this mirror strong, effective and virtually ligature free.

Features

Virtually indestructible and unbreakable mirror quality polished stainless steel face, designed to maximise the viewing area which will provide added safety
Counter-bore and Pressed Counter-bore holes designed to take security head fasteners such as Rawl Spikes or Torx Screws
Available with or without a frame, due to the unique hole design, provides flexibility in low risk areas and cost savings as a result.
Can be used in conjunction with CCTV to enhance effectiveness & safety

Download Information Sheet pdf.

Positioning

Specifications:

Product Code	Size	Mirror Face	View Distance	Fixing Holes	Frame Colour
16528HD	500mm 20"	1mm Stainless Steel	Up to 5m	6	Grey
16528C	500mm 20"	1mm Stainless Steel	Up to 5m	6	None

Installation Guide

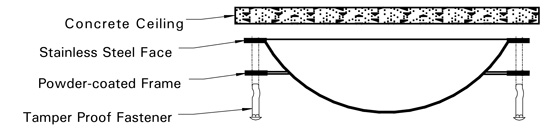

Full Dome Stainless Steel Cell Mirror Installation

Full Dome Mirror

NOTE: Retaining Ring with Counter-bore Holes is optional for Stainless Steel Domes. (ie: Frameless Domes with Pressed Counter-bore Holes can be mounted directly to ceiling with appropriate tamperproof fixings).

NOTE: If installing with Rawl Spikes, it is recommended to use a punch. This is to eliminate damage to the mirror face or the powder-coated frame.

Download Installation Guide pdf.

Suggested Fastening Methods

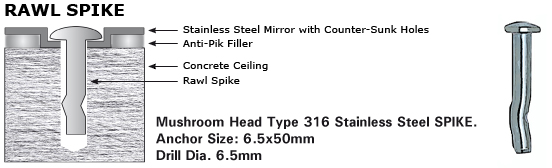

Rawl Spike Installation

Rawls Spike Punch Installation: Drill a hole into the base material to a depth of at least 60mm.The tolerances of the drill bit used should meet the requirements of ISO/DIN Standard 8035. Blow the hole clean of dust and other material. Drive the Spike through the appropriate mirror face hole (and frame when used) ensuring the head is sitting firmly against the mirror or frame and recessed as shown in the above diagram.

NOTE: Care should be taken not to overdrive the Spike so as to cause damage to the powder coated surface of the frame. Finish off by applying (optional) a bead of non-pick sealant around the mirror or frame and the wall to prevent the secretion of small objects (eg razor blades etc).

DuraVision Rawl Spike Punch: The DuraVision designed punch for inserting spikes can significantly reduce the risk of damaging the mirror face or frame during installation.

Torx Screw Installation

Torx Screw Installation: It is recommended to use a 3/16” (4.76mm) Straight Shank Tanged Bit to drill the hole. The hole must be at least 2” or 50mm overall depth and free of any debris. By using the #27, 1/4” (6.35mm) Hex Bit the special Hi-Lo thread literally taps into masonry materials. The high,sharp thread with its notched cutting edge cuts deeply and easily. The alternating low thread provides stabilty for fast, accurate driving. Torx Tamperproof masonry screws are the optimal fastening solution for use in concrete, brick, or hollow block.

Cleaning Guide

Stainless Steel Mirror Cleaning Guide:

General Cleaning:
DuraVision™ recommend cleaning their Stainless Steel Mirrors with soap and water and then with a soft, lint free, damp cloth.

DO NOT USE:

abrasives
acids

Polish:
DuraVision™ does not recommend using a commercial Stainless Steel Polish, as the protective layer will leave a residue on the highly polished mirror faces. Rubbing plain white flour on a dry stainless steel mirror face with a dry cloth will polish the mirror to its original brilliance.

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours with a suitable lacquer thinners. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Download Cleaning Guide pdf.
