Description

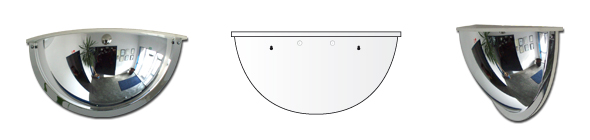

Indoor DeLuxe Half Dome Mirrors
The new DeLuxe Half Dome Mirror is designed for busy corridors and passageways at T-intersections to help avoid collisions. The lightweight vinyl back and lid enclose the cavity so that no dust, garbage or other objects can left inside and will not require any constant cleaning out. Ideal in hospitals, office buildings, factories and schools, this new innovation is the most effective way to improve safety.
Features
- 3mm acrylic face
- Pure reflective coating
- Available is sizes 600mm and 900mm dia.
- 180o Viewing Area
- Vinyl Celuka Back and Lid
- Complete With Mounting Screws
Suitable Uses
- Hospitals
- Schools and Childcare Centres
- Office Buildings
- Factories and Warehouses
Download Information Sheet pdf.
Positioning
Specifications
| Product Code | Size Diameter | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 18521HE | 450x225mm | Up to 4m | 3mm Acrylic | 10mm Vinyl | None |
| 18535HE | 600x300mm | Up to 6m | 3mm Acrylic | 10mm Vinyl | None |
| 18553HE | 900x450mm | Up to 9m | 3mm Acrylic | 10mm Vinyl | None |
| Product Code | Size Diameter | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 68521HE | 18"x9" | Up to 13' | 3mm Acrylic | 10mm Vinyl | None |
| 68536HE | 24"x12" | Up to 20' | 3mm Acrylic | 10mm Vinyl | None |
| 68553HE | 36"x18" | Up to 30' | 3mm Acrylic | 10mm Vinyl | None |
Installation Guide

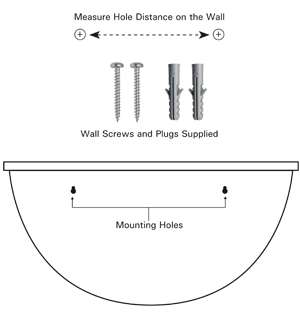

Indoor DeLuxe Half Dome Mirror Installation Guide:
-
Measure the distance between the two hole slots on the wall
(250mm apart for 450x225mm Half Dome)
(300mm apart for 600x300mm Half Dome)
(500mm apart for 900x450mm Half Dome) -
Screw the supplied wall screws into the wall or insert the supplied wall plugs into the wall, making sure they are level and the screws are protruding out from the wall approx 13mm.
-
Slot the mirror onto the screws to hang.
-
When the job is complete, totally remove the protective film from the face.
Cleaning Guide
Acrylic Mirror Cleaning Guide:
General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.
Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.
DO NOT USE:
- abrasives
- acids
- solvents such as petrol and laquer thinners
Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.
Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:
- For cleaning use NOVUS plastic polish #1
- For fine scratches use NOVUS plastic polish #2
- For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.
Additional Images

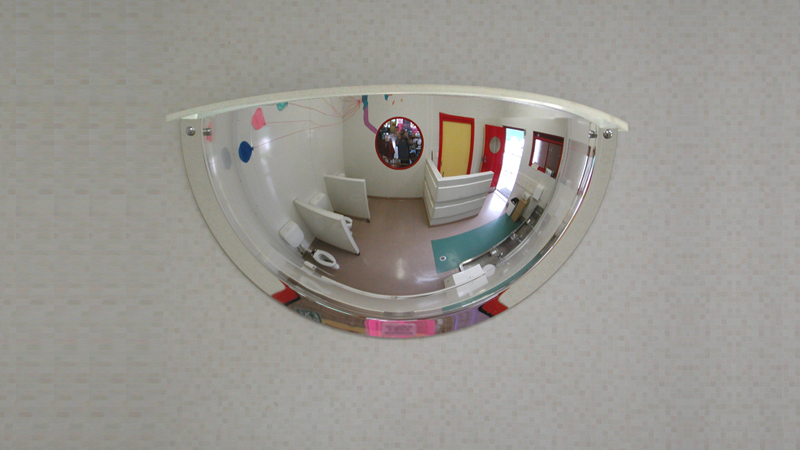

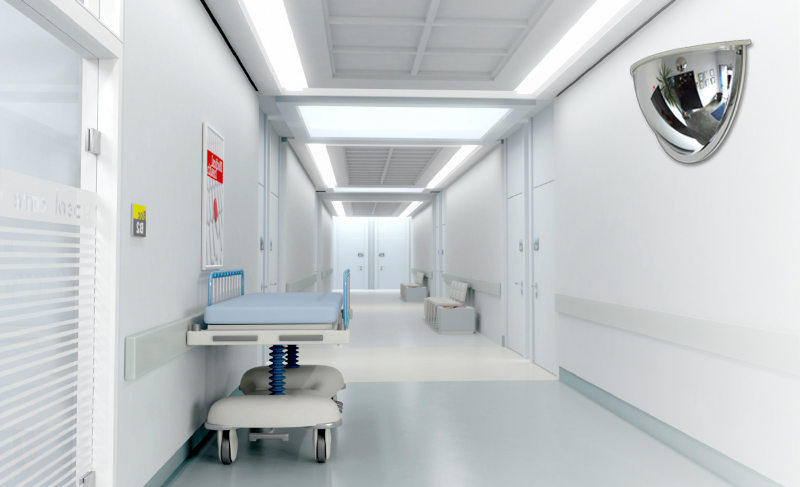

DeLuxe Half Dome in Corridors
