Description

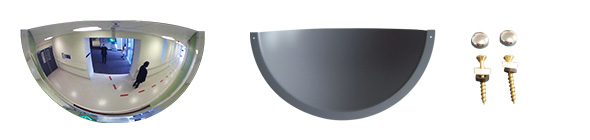

Indoor Half Dome Mirrors
This wall-mounted mirror is particularly effective to see 180° at T-Intersections allowing vision left and right at the end of corridors and retail aisles. The Half Dome is wall mounted and is very useful for store surveillance above shelving. When used in busy corridors such as hospitals, schools and factories the risk of collisions is significantly reduced.
Features
- 2mm or 3mm acrylic face
- Pure reflective coating
- Dome top screws for attaching to wall
Suitable Uses

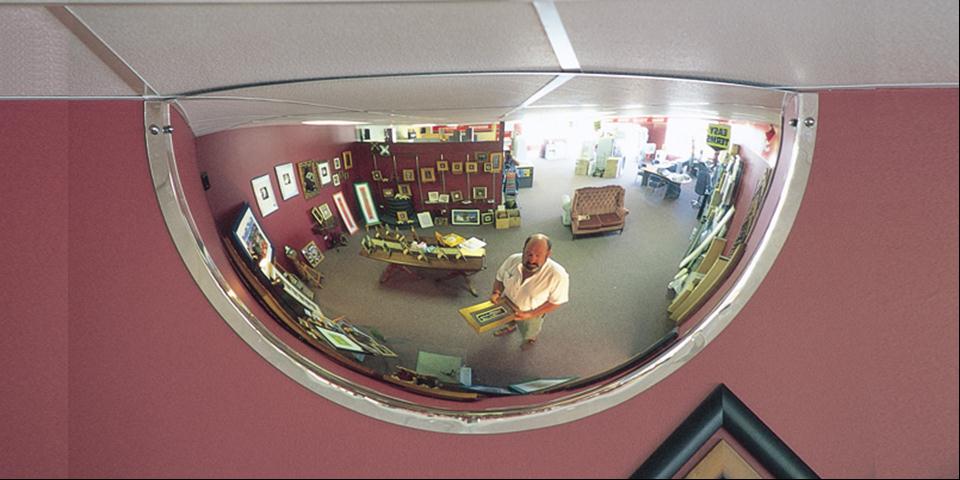

- Retail and Security surveillance
- Safety in busy corridors
- T-intersections in buildings
- Above high shelving for two-way observation
- End of aisles to see both ways
Download Information Sheet pdf.

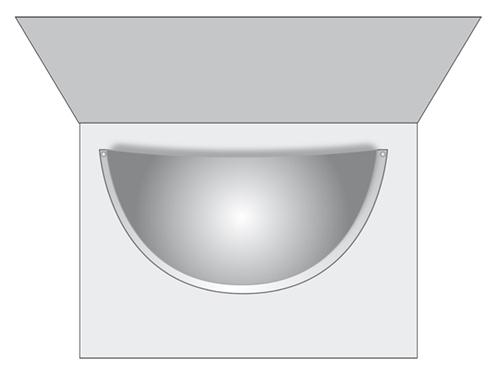

Positioning
Specifications
| Product Code | Size Diameter | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 18535H | 600x300mm | Up to 6m | 2mm Acrylic | None | None |
| 18553H | 900x450mm | Up to 9m | 2mm Acrylic | None | None |
| 18556H | 1200x600mm | Up to 14m | 3mm Acrylic | None | None |
| Product Code | Size Diameter | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 68521H | 9" x 18" | Up to 10' | 2mm Acrylic | None | None |
| 68536H | 12" x 24" | Up to 20' | 2mm Acrylic | None | None |
| 68553H | 18" x 36" | Up to 30' | 2mm Acrylic | None | None |
Installation Guide
Indoor Half Dome Convex Mirror Installation Guide:
-
Decide the appropriate place to site the mirror to give maximum vision.
-
Dome capped screws are supplied for fixing directly to the wall.
-
After installation is complete, totally remove the protective film from the face.
Cleaning Guide
Acrylic Mirror Cleaning Guide:
General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.
Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.
DO NOT USE:
- abrasives
- acids
- solvents such as petrol and laquer thinners
Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.
Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:
- For cleaning use NOVUS plastic polish #1
- For fine scratches use NOVUS plastic polish #2
- For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.
Additional Images
Indoor Half Dome Corridor
Indoor Half Dome Factory

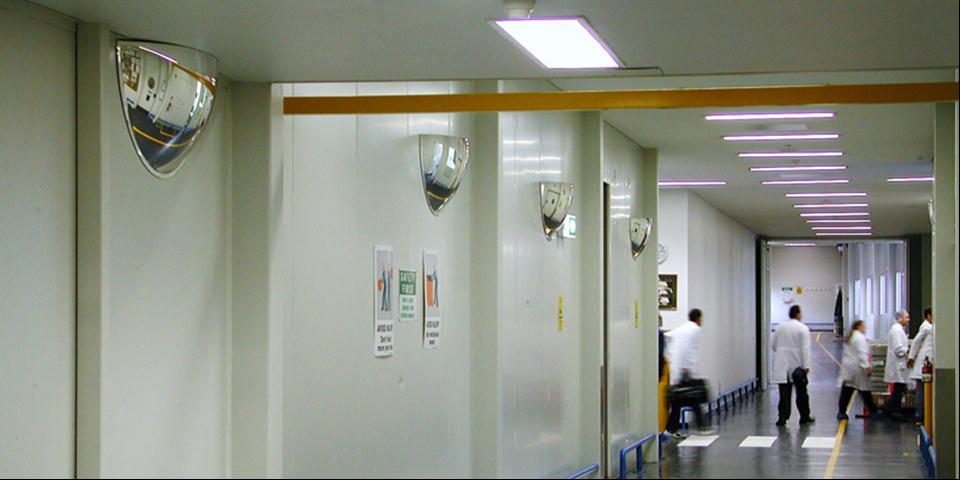

Indoor Half Dome Hospital
