Description
Indoor Standard Convex Mirrors
This very versatile mirror will adjust to any angle to allow optimal line of sight. This Indoor/Outdoor Acrylic mirror can be positioned to see around corners, aisles and partitions, in corridors and hallways or to view machinery. Ideal for store security, in warehouses, hospitals or any other situation where blind spots are present.

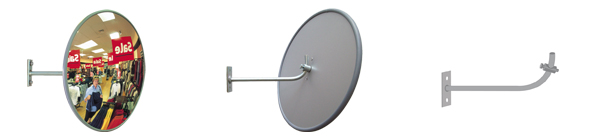

Features
- 2mm or 3mm acrylic mirror face
- Pure reflective coating
- ACM (Aluminium Composite Material) or vinyl back
- Vinyl extrusion
- Includes J-Bracket to fix to wall or ceiling (Mounting screws Not included).
Suitable Uses
- Retail and Store Security
- Office Security
- Light Industrial Safety
- Hospitals and Schools
- Visitor Detection
- Other Indoor Observation Uses
Download Information Sheet pdf.
Positioning
Specifications
| Product Code | Size Diameter | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 18020J | 300mm | Up to 5m | 2mm Acrylic | 4mm ACM | 250mm |
| 18038J | 450mm | Up to 7m | 2mm Acrylic | 4mm ACM | 250mm |
| 18056J | 600mm | Up to 10m | 2mm Acrylic | 4mm ACM | 360mm |
| 18072J | 760mm | Up to 13m | 2mm Acrylic | 4mm ACM | 360mm |
| 18108J | 900mm | Up to 18m | 2mm Acrylic | 10mm Vinyl | 435mm |
| 18112J | 1200mm | Up to 23m | 3mm Acrylic | 10mm Vinyl | 435mm |
| Product Code | Size Diameter | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 68020JP | 12" | Up to 16' | 2mm Acrylic | 4mm ACM | 9 3/4" |
| 68038JP | 18" | Up to 23' | 2mm Acrylic | 4mm ACM | 9 3/4" |
| 68056JP | 24" | Up to 33' | 2mm Acrylic | 4mm ACM | 14" |
| 68082JP | 32" | Up to 60' | 3mm Acrylic | 4mm ACM | 14" |
Installation Guide

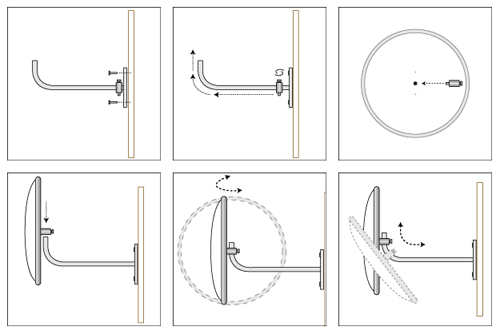

Indoor Standard Convex Mirror Installation Guide:
-
Decide the appropriate place to site the mirror to give maximum vision.
-
Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.
-
Thread adaptor into the back of the mirror
-
Peel protective film off around the immediate edge of the mirror.
-
Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.
-
Tighten the locking bolt on the adaptor securely.
Cleaning Guide
Acrylic Mirror Cleaning Guide:
General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.
Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.
DO NOT USE:
- abrasives
- acids
- solvents such as petrol and laquer thinners
Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.
Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:
- For cleaning use NOVUS plastic polish #1
- For fine scratches use NOVUS plastic polish #2
- For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.
Additional Images

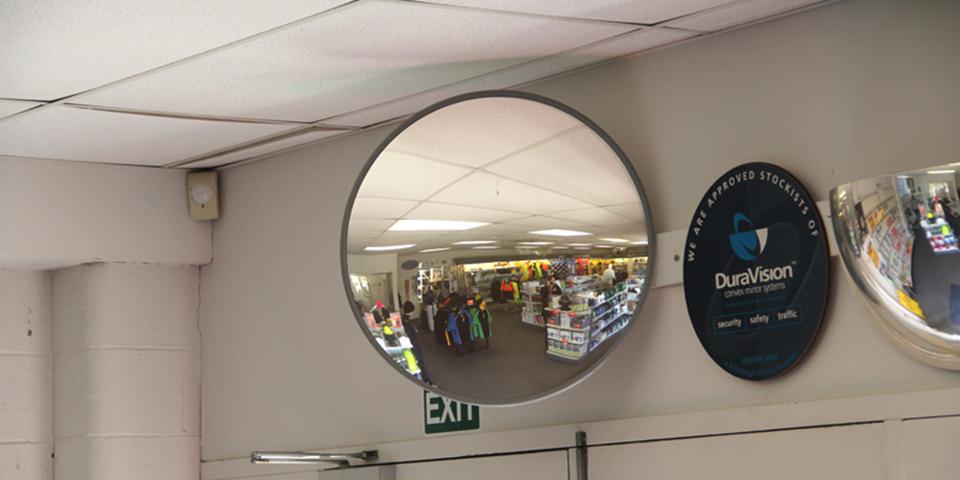

Indoor Retail Convex Mirror

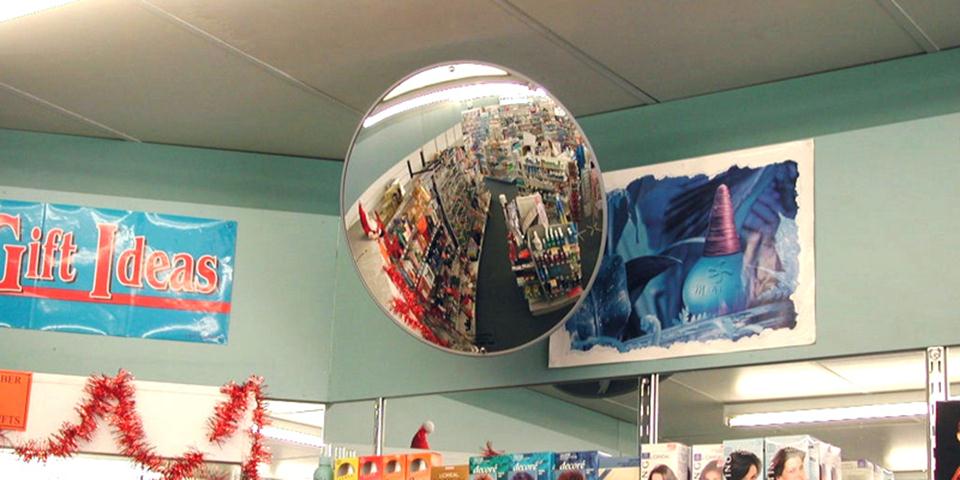

Convex Store Security Mirror

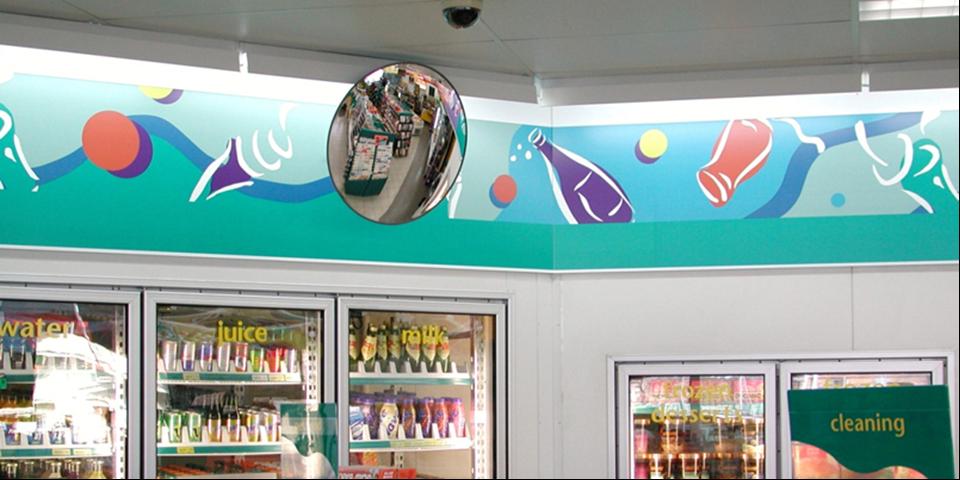

Convex Mirror Store Surveillance

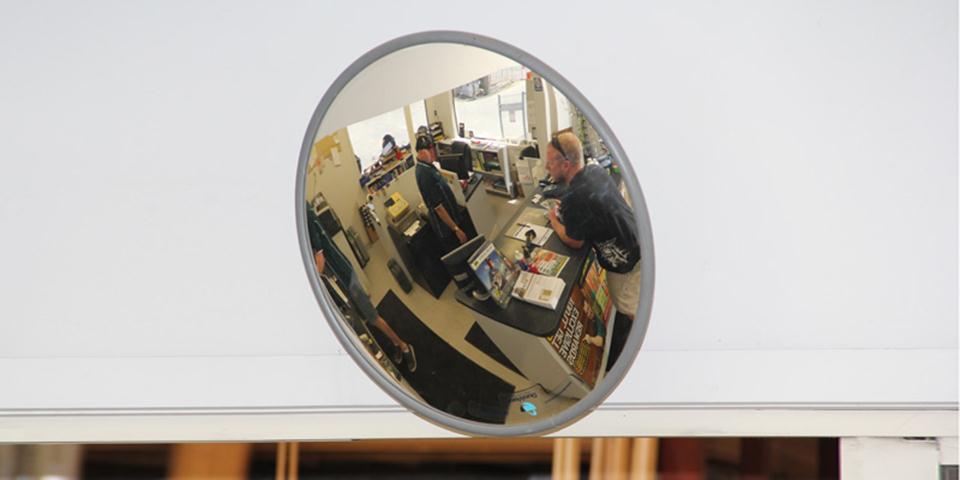

Convex Shop Security Mirror

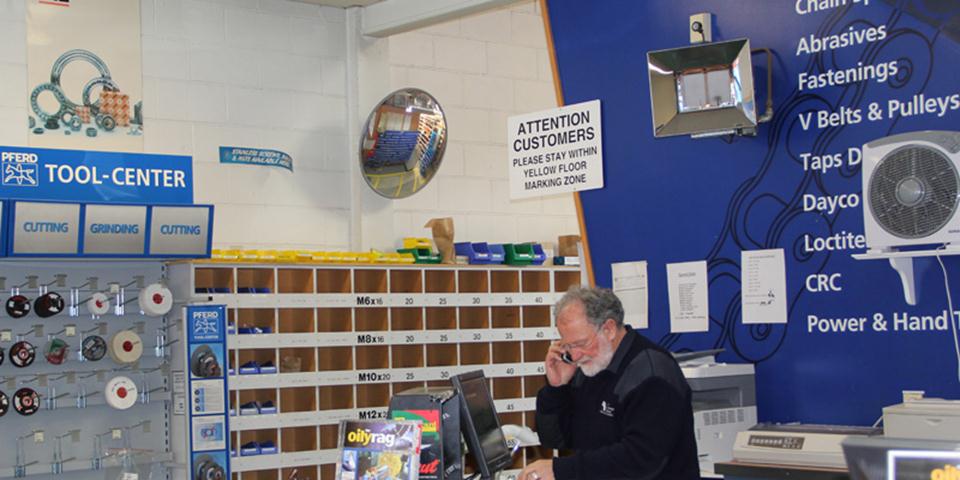

Convex Retail Security Mirror
