Pool Observation Mirrors

Installation Guide

Pool Observation Mirror Installation Guide:

1. Decide the appropriate place to site the mirror to give maximum vision.

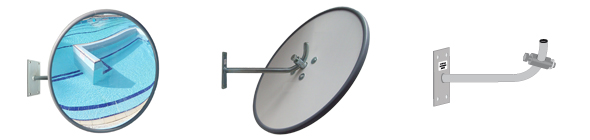

2. Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.

3. Thread adaptor into the back of the mirror

4. Peel protective film off around the immediate edge of the mirror.

5. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.

6. Tighten the locking bolt on the adaptor securely.

Optional Pole Mounting: (NOTE: U-Bolts are optional and must be purchased separately)

1. Choose a 60mm or 75mm Round pole to attach the U-Bolts to.

2. Thread the U-Bolts through one side of the J-Bracket and then through both sides of the U-Bolt Flat Plate.

3. Thread the Washer and Nut onto the U-Bolts and tighten.

4. Thread adaptor into the back of the mirror

5. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.

6. Tighten the locking bolt on the adaptor securely and remove protective film.

Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
DuraVision^TM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

• abrasives
• acids
• solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:

• For cleaning use NOVUS plastic polish #1
• For fine scratches use NOVUS plastic polish #2
• For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.

Download Cleaning guide pdf.
